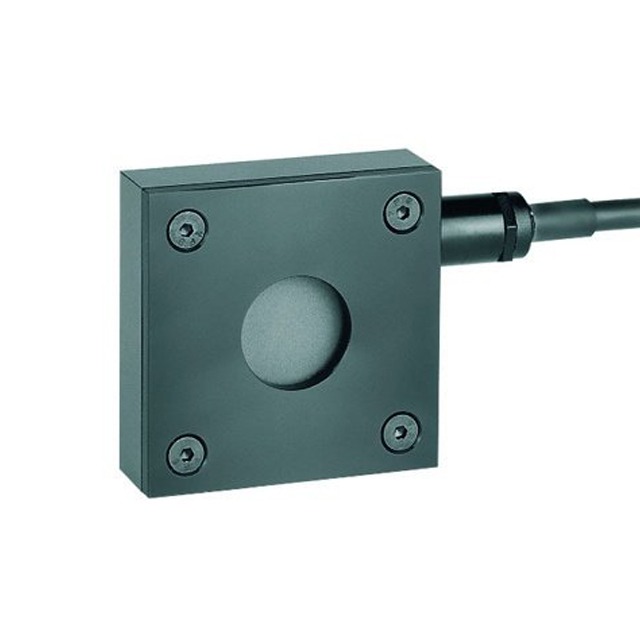

The 100C-BB-18-SH is a thin profile thermal power laser sensor 14.5mm thick with mounting threads and with an 18mm aperture. It can measure from 60mW to 4W free standing and 100W when heat sinked. It does not measure energy. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 11μm.

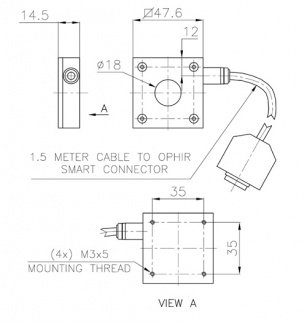

100C-BB-18-SH Drawing
| Aperture | ?18mm |
| Spectral Range | 0.19-11μm |
| Power Range | 60mW-100W |
| Energy Range | NA |
| Dimensions | 48 L x 48 W x 15 D (mm) |
| Max Average Power Density | 30kW/cm2 at 4W |
| Response Time | 1.2 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10J/cm2 |
| Max Average Power | 100W heat sinked |
| Communication | N.A. |
