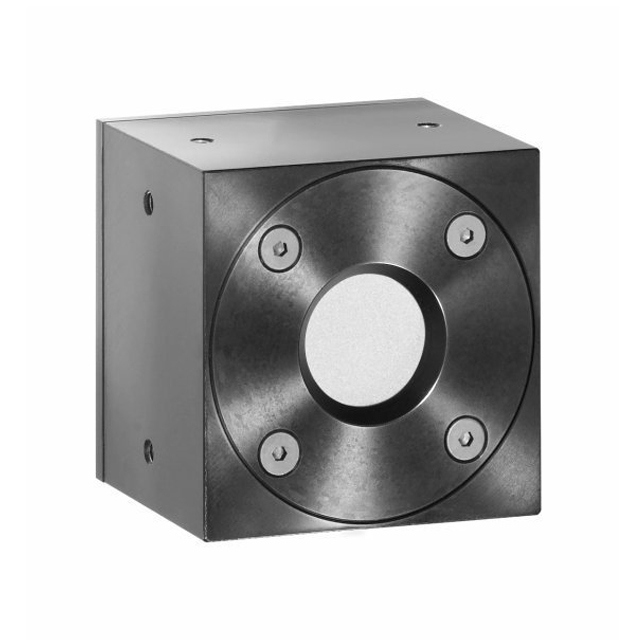

The 150W-UAU is a water cooled OEM thermal power/energy laser sensor with an 18mm aperture. It can measure from 100mW to 150W. It can measure energy from 50mJ to 100J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm. It has USB output.
150W-UAU Drawing
| Aperture | ?18mm |
| Spectral Range | 0.19-20μm |
| Power Range | 100mW-150W |
| Energy Range | 50mJ-100J |
| Dimensions | 50 L x 50 W x 38 D (mm) |
| Max Average Power Density | 12kW/cm2 at 150W |
| Response Time | 1.2 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10J/cm2 |
| Max Average Power | 150W water cooled free standing |
| Communication | USB |
