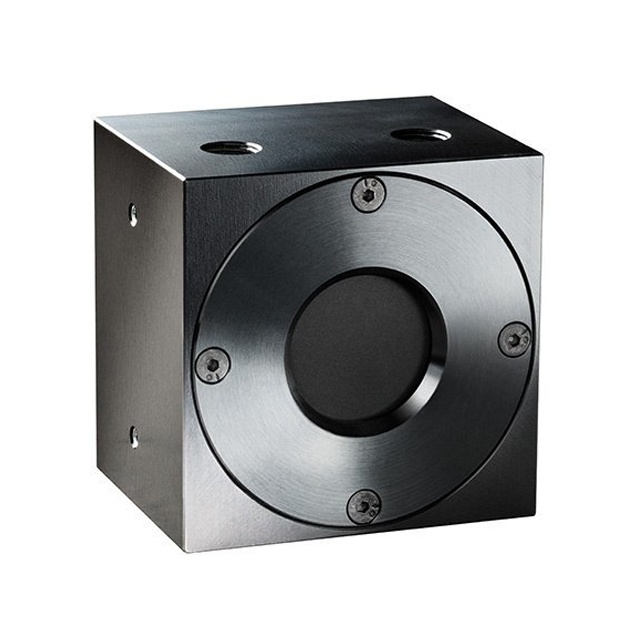

The 600W-UAE is a water cooled OEM thermal power/energy laser sensor with an 26mm aperture. It can measure from 5W to 600W. It can measure energy from 500mJ to 300J. Its high damage threshold LP2 absorber covers the spectral range from 0.35 to 2.2μm. It has Ethernet output.
600W-UAE Drawing
| Aperture | ?26mm |
| Spectral Range | 0.35-2.2μm |
| Power Range | 5W-600W |
| Energy Range | 500mJ-300J |
| Dimensions | 65 L x 65 W x 49 D (mm) |
| Max Average Power Density | 11kW/cm2 at 600W |
| Response Time | 2.5 s |
| Max Energy Density(for <100ns) | 0.1J/cm2 |
| Max Energy Density(for 2ms) | 130J/cm2 |
| Max Average Power | 600W water cooled free standing |
| Communication | Ethernet |
