Datasheet

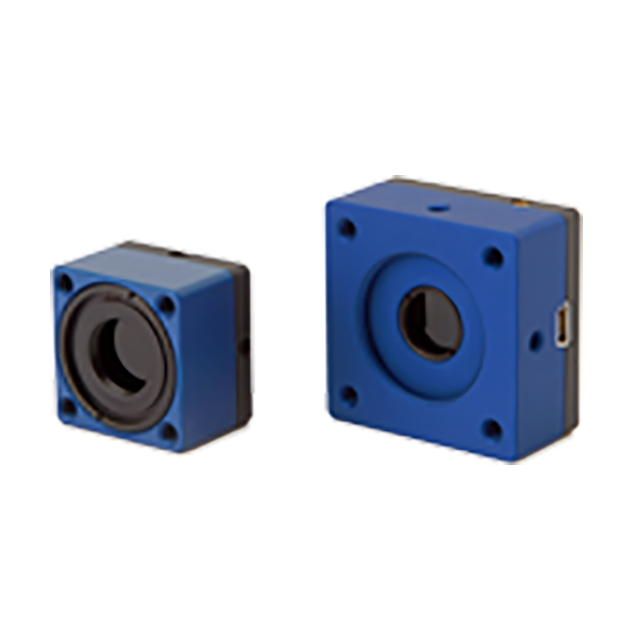

The particular cost-effective beam profiler CinCam CMOS is optimized to provide excellent sensitivity. The Megapixel CMOS sensor provides accurate laser beam analysis with up to 30fps. The lightweight and ultra-compact design enables easy adaption to standard optical imaging systems and opto-mechanical components ensuring highest flexibility.
Small entry-level beam profiler
High-resolution MPixel sensor without cover glass
Real-time monitoring by high frame rate and dynamic range
Standard high-speed USB 2.0 / 3.0 interface
Different software versions available: Lite, Standard, Professional
| Type | CMOS-1201 (1/2”) | CMOS-1202 (1/1.8”) | CMOS-1203 (1/1.8”) | CMOS-1204 (1/2.5”) |
| Spectral response: | 400-1150nm | 400-1320nm | 400-1320nm | 400-1150nm |
| Number of pixel: | 1.3MPixel | 1.3MPixel | 2MPixel | 5MPixel |
| Pixel size: | 5.2x5.2μm2 | 5.3x5.3μm2 | 4.5x4.5μm2 | 2.2x2.2μm2 |
| Bit depth (Output): | 8Bit | 8Bit | 8Bit | 8Bit |
| Dynamic: | 68dB | 62dB | 62dB | 70dB |
| Dimensions: | 40x40x20mm3 | 40x40x20mm3 | 40x40x20mm3 | 40x40x20mm3 |
| Type | CMOS-1201- Nano (1/1.8”) | CMOS-1.001- Nano (1”) | CMOS-1201-Pico (1/2.5”) |
| Spectral response: | 400-1320nm | 400-1320nm | 400-1150nm |
| Number of pixel: | 1.3MPixel | 4.2MPixel | 5MPixel |
| Pixel size: | 5.3x5.3μm2 | 5.5x5.5μm2 | 2.2x2.2μm2 |
| Bit depth (Output): | 10Bit | 10Bit | 12Bit |
| Dynamic: | 62dB | 60dB | 70dB |
| Dimensions: | 29x29x20mm3 | 29x29x24mm3 | 15x15x11.5mm3 |
