Used for measuring magnets and DC solenoids, measuring whether the magnet has lost strength or drawing magnetic field maps, such as permanent magnet, DC motor, electromagnet, Speaker Gap, and high current measurement. Transverse or axial magnetic field can be measured, measuring range 0-19,999 Gauss.

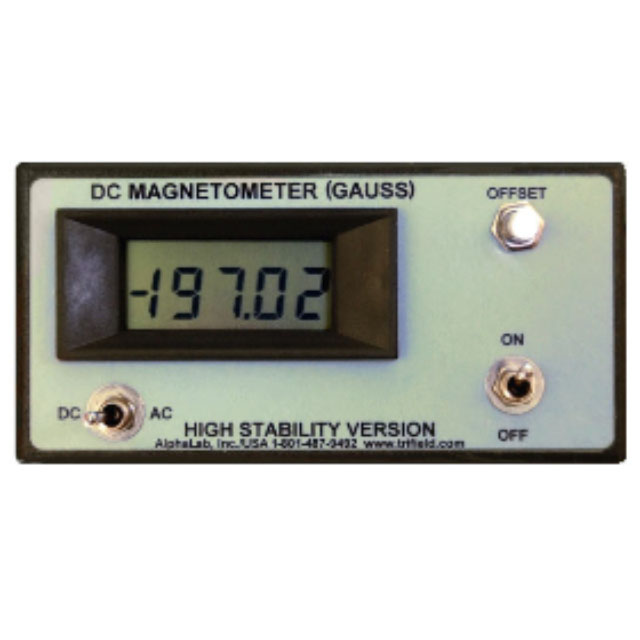

The High-Stability DC Magnetometer measures DC and AC field up to 199.99 gauss with 0.01 gauss resolution
The High-Stability DC magnetometer reads both DC and AC magnetic field (1-axis) from .01 to 199.99 gauss. Accuracy is +/- 2% of the reading for DC and +/- 3% for AC (45 Hz – 2000 Hz). The probe is detachable.
This meter is optimized to measure residual DC magnetism and background AC field. If used in a solenoid, it can be measured using either AC or DC
| Range： | 0-19.999, 0-1,999.9, 0-199.99 |
| offset control： | ±10G for adjusting "zero" |
| Linearity： | ±1％，At 20000 Gauss |
| accuracy： | ±2％，30-110℉ |
| resolution ratio： | 0.01G，About 1/50 of the Earth's magnetic field, at 200 grams |
