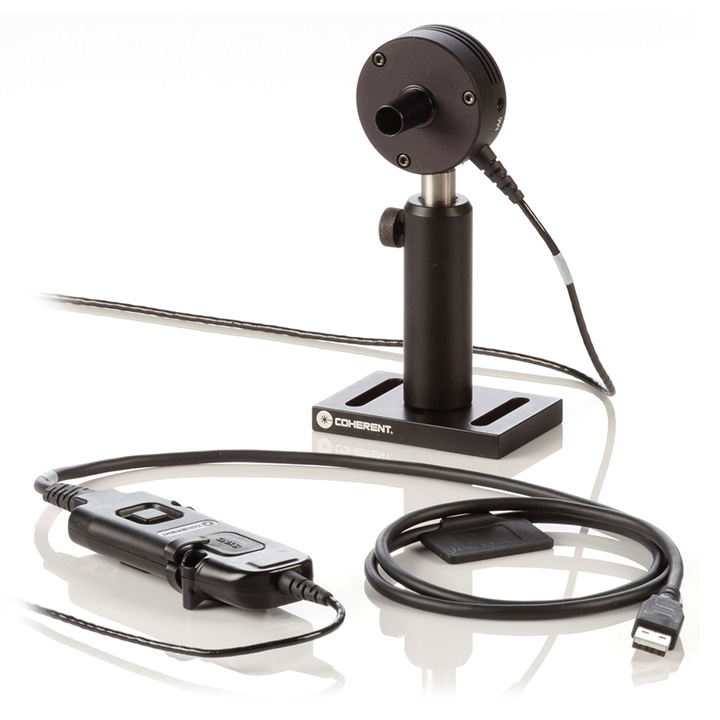

Coherent EnergyMax-RS J-10SI-HE Energy Sensor

Updated:2025-03-13

Brand: Coherent
Model: EnergyMax-RS J-10SI-HE
Description: The EnergyMax-RS J-10Si-HE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557)
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent EnergyMax-RS J-10SI-HE Energy Sensor Description：

User's Manual

The EnergyMax-RS J-10Si-HE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1150146) is available.

Semiconductor energy sensor with silicon detector and diffuser for measuring laser pulses from 750 pJ to 775 nJ at up to 10000 pps. Direct RS232 interface

Key Features:

325 to 900 nm spectral range

10 mm diameter active area

750 pJ to 775 nJ energy range

10000 pps repetition rate operation

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type

RS232

Active Area Diameter

10 mm

Energy Range

750 pJ to 775 nJ (at 532 nm)

Wavelength Range

325 nm to 900 nm

Detector

Silicon

Noise Equivalent Energy

<75 pJ (at 532 nm)

Maximum Pyroelectric Rep. Rate (pulses per second)

10000

Wavelength Range (micrometers)

.325 to .900

Maximum Average Power (watts)

0.06

Maximum Pulse Width (microseconds)

Diffuser

ND2

Calibration Uncertainty (%)(k=2)

±3

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

1064

Cable Length (meters)
