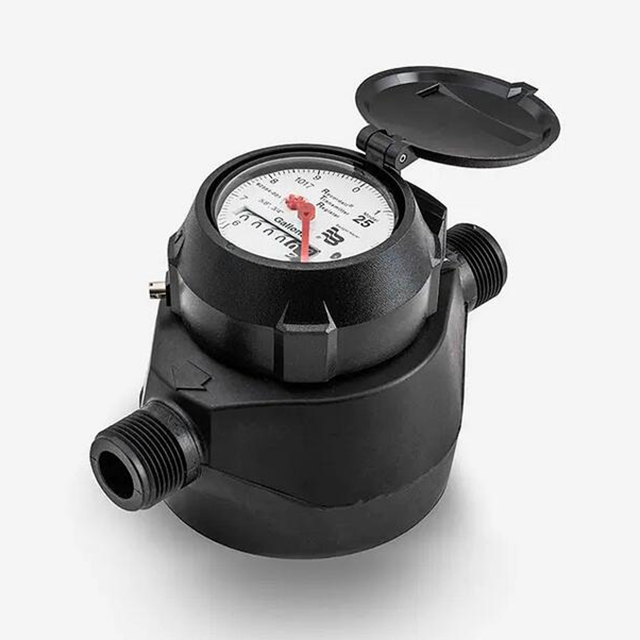

METER’s new flow meter offerings combine the accuracy of positive displacement meters with the reliability and economy of nutating disc technology. Constructed out of engineered polymer, our flow meters are user serviceable and certified to NSF/ANSI Standards 61 and 372. The meters include a magnetically driven register, a pulse transmitter for digital output (no power required), and meter connection fittings. These meters offer minimal pressure loss making them ideal for retrofitting existing irrigation systems.
| Typical operating range | 0.5 to 25 gpm |
|---|---|
| Low flow | (Min. 98.5%): 0.25 gpm |
| Maximum continuous operation | 15 gpm |
| Pressure loss at maximum continuous operation | 2.8 psi |
| Maximum operating temperature | 26 °C |
| Maximum operating pressure | 150 psig |
| Meter connection tailpiece thread | 3/4″ male NPT |
| Pulse transmitter resolution | 1 pulse = 1 gallon |
