This technique is useful when the detector is used in high brightness situations or when capturing very fast moving objects. The gate unit operates by turning the photocathode on and off to 3 ns with a 300 KHz repetition rate (model dependant). For UHV detectors our GM-MCP gate module enables direct gating of the MCP to 8 ns. This is particularly useful when time slicing of electrons and ions is required.
| PHOTEK PART NO. | DESCRIPTION |
| M10-50B | 50 ns, 10 KHz repetition gate unit |

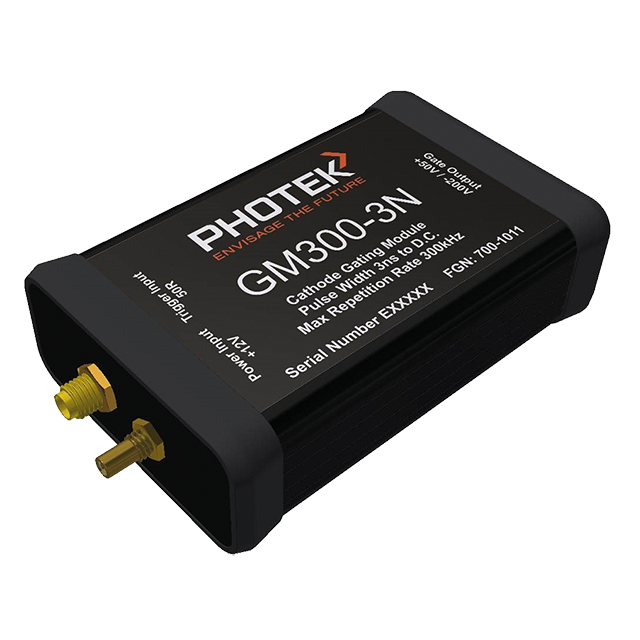

| GM300-3 | 3 ns, 300 KHz repetition rate gate unit |
| GM300-8U | 8 ns, 300 KHz repetition rate universal gate unit. |
| GM-MCP3-500 | 10ns, 1 KHz repetition rate 500V MCP gate unit |
| GM-MCP3-1000 | 10ns, 1KHz repetition rate 1000v MCP gate unit |
| IGC3 | Gate controller, minimum pulse width 3 ns with 250 ps increments |
