Si-PIN and InGaAs-PIN photodiodes
Wavelength range from 320 to 1700 nm
Ultra-wide bandwidth from 10 kHz up to 2 GHz
Max. conversion gain 4.75 x 103 V/W
Min. NEP 11 pW/√Hz

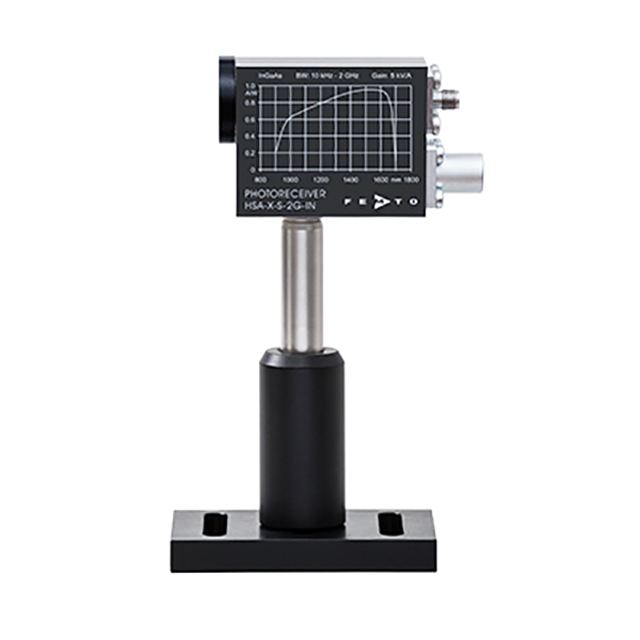

By combining state of the art photodiodes with the proven and outstanding FEMTO GHz amplifier technology we designed a new family of photoreceivers with a remarkable performance. The HSPR-X and HSA-X-S offer an upper bandwidth limit of 2 GHz. Two models with either a fast Si-PIN or InGaAs-PIN photodiode cover a spectral range from 320 to 1000 nm and 900 to 1700 nm, respectively. Due to the sophisticated amplifier design the minimum NEP is just 11 pW/√Hz at a transimpedance of 5 x 103 V/A. This allows for the measurement of optical power levels in the μW range with GHz speed.
COMPATIBLE WITH OPTICAL BENCH (FREE SPACE) AND FIBER OPTICSThe free space input is designed as a 1.035"-40 threaded flange with a screw-on coupler ring (FST) or as a 25 mm round flange without thread (FS). Both types open up broad compatibility with optical accessories from various manufacturers, such as lenses, tubes, cage systems, optical adapters etc.
The FST free-space input can be converted into fiber connections (FC, FSMA) easily by simply screwing on the fiber adapter of the PRA series.
The relatively large-area detector facilitates optical focusing in free-space applications and ensures a high and stable degree of coupling when using the optionally available fiber optic adapter. For models with detector areas smaller than ? 0.4 mm, the use of fiber adapters is only recommended to a limited extent, since coupling losses and instabilities can occur. If the focus is on high-precision fiber optic measurements, using FC-models with fixed optical fiber input will usually give the best results.
Pic. 1: FST input flange with 1.035"-40 external thread and coupler ring with internal thread；Pic. 2: FS input with 25 mm round flange；Pic. 3: FC input with permanent/fixed PC/APC coupling
All HSA-X-S and HSPR-X photo receivers are equipped with UNC 8-32 and M4 threaded holes and can therefore be conveniently and stably integrated into optical systems on standard rod holders.
APPLICATIONS| Models |
HSA-XS-1G4-SI-FST HSA-XS-1G4-SI-FS HSA-XS-1G4-SI-FC
|
HSPR-XI-1G4-SI-FST HSPR-XI-1G4-SI-FS HSPR-XI-1G4-SI-FC
|
HSA-XS-2G-IN-FST HSA-XS-2G-IN-FS HSA-XS-2G-IN-FC
|
HSPR-XI-2G-IN-FST HSPR-XI-2G-IN-FS HSPR-XI-2G-IN-FC
|
|
Output |
non-inverting | inverting | non-inverting | inverting |
|
Photodiode |
? 0.4 mm Si-PIN | ? 0.4 mm Si-PIN | ? 0.1 mm InGaAs-PIN | ? 0.1 mm InGaAs-PIN |
| Spectral Range | 320 – 1000 nm | 320 – 1000 nm | 900 – 1700 nm | 900 – 1700 nm |
| Bandwidth (?3 dB) | 10 kHz – 1.4 GHz | 10 kHz – 1.4 GHz | 10 kHz – 2 GHz | 10 kHz – 2 GHz |
| Rise/Fall Time (10 % - 90 %) | 250 ps | 250 ps | 180 ps | 180 ps |
| Transimpedance Gain | 5 x 103 V/A |
5 x 103 V/A，inverting |
5 x 103 V/A |
5 x 103 V/A，inverting |
| Conversion Gain | 2.55 x 103 V/W(@ 760 nm) |
2.55 x 103 V/W(@ 760 nm) |
4.75 x 103 V/W(@ 1550 nm) |
4.75 x 103 V/W(@ 1550 nm) |
| NEP (@ 100 MHz) |
32 pW/√Hz(@ 760 nm) |
19 pW/√Hz(@ 760 nm) |
16 pW/√Hz
(@ 1550 nm) |
11 pW/√Hz
(@ 1550 nm) |
| Output VSWR |
2.5：1 |
1.4：1 |
2.5：1 |
1.4：1 |
| Maximum Output Voltage @ 50 Ω |
1.9 V |
2.0 V |
1.9 V |
2.0 V |
| Output Noise |
3.6 mVRMS |
2.5 mVRMS |
3.6 mVRMS |
2.5 mVRMS |
| Datasheet | 869KB | 872KB | 693KB | 693KB |
Output short-circuit protected. Threaded M4 and 8-32 mounting holes for use with standard mounting posts. Power supply +15 V via 3-pin Lemo® socket. A mating connector is provided with the device. Optional power supply PS-15 available. For further information please view the datasheet or contact FEMTO.
