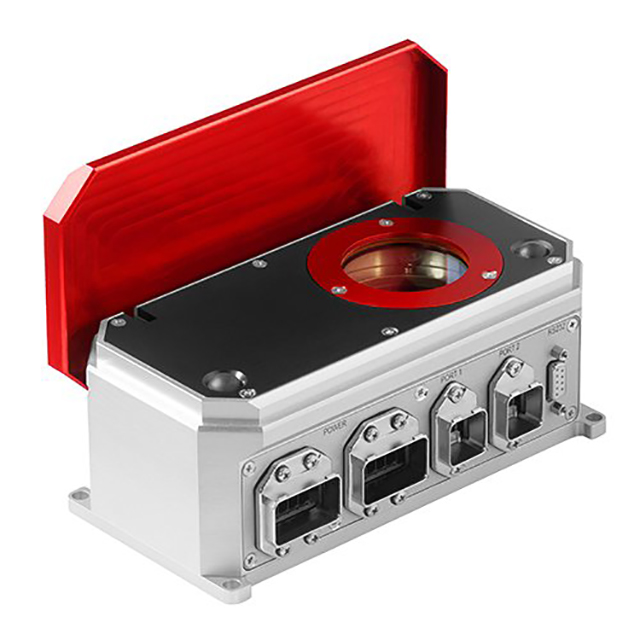

Helios Plus – EtherCAT 7Z07105

Updated:2025-03-13

Brand: Ophir
Model: Helios Plus – EtherCAT
Description: The Helios Plus – EtherCAT measures high power industrial lasers of up to 12kW by measuring the energy of a short time exposure to this power. The laser is set to a pulse of from 0.3 to several second
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Helios Plus – EtherCAT 7Z07105 Description:

The Helios Plus – EtherCAT measures high power industrial lasers of up to 12kW by measuring the energy of a short time exposure to this power. The laser is set to a pulse of from 0.3 to several seconds. The Helios Plus – EtherCAT measures the energy and exposure time of this sample of the power, and from this calculates the power. By keeping the pulse energy under 5 kJ, there is no need for water cooling and the sensor can be kept to a compact size. Helios Plus – EtherCAT is a version of Helios that has EtherCAT and RS232 communications, AIDA compatible connectors for power and data.

Helios Plus – EtherCAT 7Z07105 Drawing：

Helios Plus – EtherCAT 7Z07105 Drawing

Helios Plus – EtherCAT 7Z07105 Specification：

Absorber Type	LP2, absorption ~94%
Aperture	?50mm
Spectral Range	450-550nm, 900-1100nm
Power Range	50W-12kW
Energy Range	100J – 5kJ
Backscattered Power	N.A.
Dimensions	200 Lx123 Wx144 H (mm) - Open, 200 L x 100 W x 84 H(mm)-Closed Connectors: AIDA, DB9
Max Pulse Energy	N.A.
Max Average Power Density	N.A.
Response Time	3 s
Max Energy Density (for <100ns)	N.A.
Max Energy Density (for 2ms)	4kJ/cm2
Max Average Power	12kW
BeamTrack Functions	N.A.
