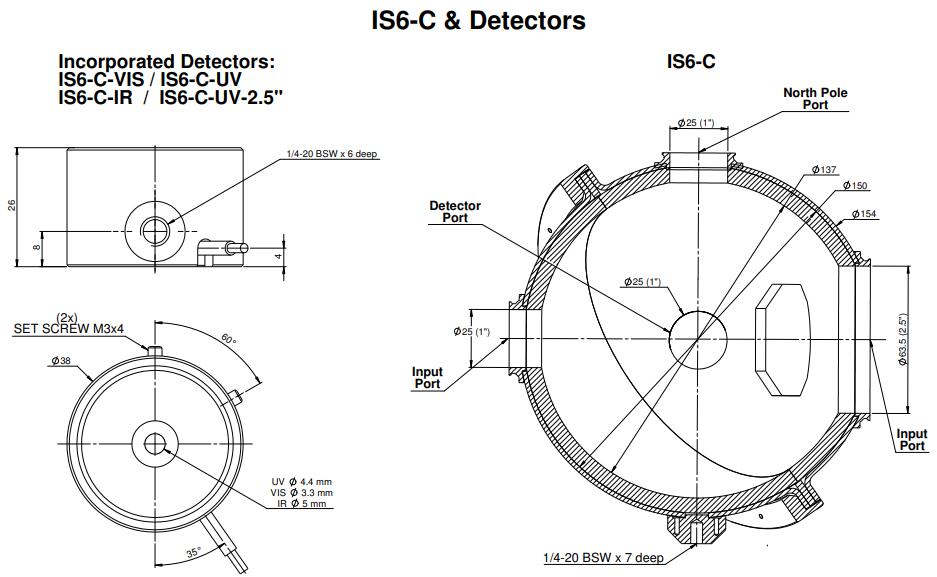

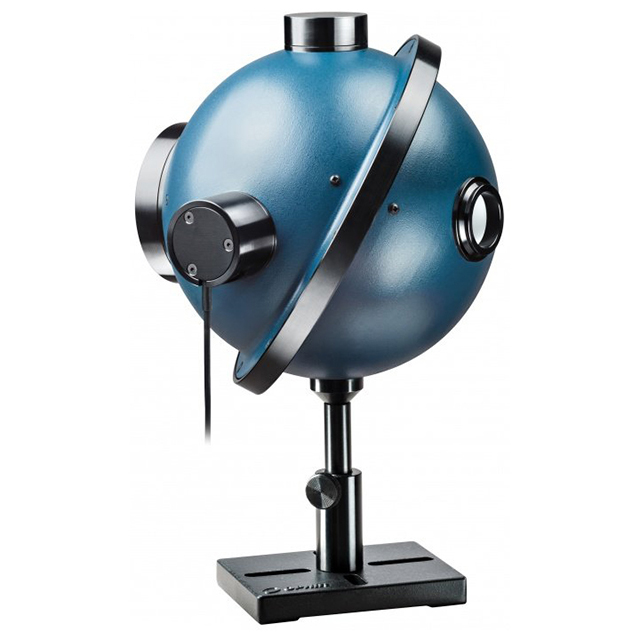

The IS6-C-VIS is a 6” integrating spheres (5.3” inside) with a Silicon detector for use with collimated (C) beams. The IS6-C-VIS comes with a VIS detector, is calibrated from 400 to 1100nm and can measure up to 30W.
| Aperture | ?25mm |
| Spectral Range | 400-1100nm |
| Power Range | 20μW-30W |
| Dimensions | ?154 (mm) |
| Max Pulse Energy | 5mJ |
| Max Average Power Density | 1 kw/cm2 |
| Max Average Power | 30W |
| Max Beam Divergence | ±15 deg |
| Sensitivity to Beam Size | ±1% |
Introduction to the types of power/energy laser sensors
Power and single engine energy sensor
Ophir offers two types of power sensors: photodiode sensors and thermal sensors. Photodiode sensors are used for low power from picowatts to hundreds of milliwatts and up to 3W. Thermal sensors are suitable for power ranging from a fraction of a milliwatt to several kilowatts. The thermal sensor can also measure the single transmission energy at a pulse rate of no more than one pulse every 5 seconds.
Repetitive pulse energy sensor
For higher pulse rates, Ophir has pyroelectric energy sensors capable of measuring pulse rates up to several 10KHz.
