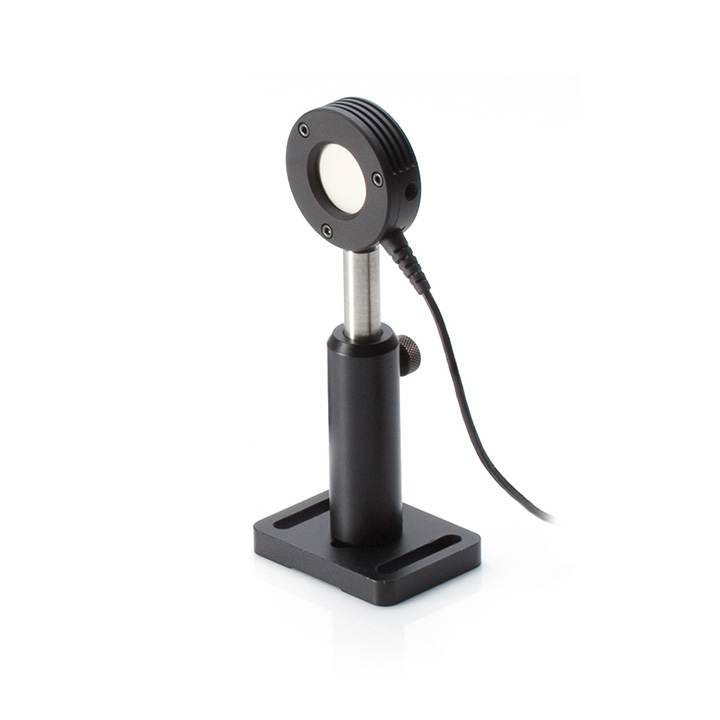

Coherent J-25MT-10KHZ Energy Sensor

Updated:2025-03-13

Brand: Coherent
Model: J-25MT-10KHZ
Description: The J-25MT-10KHZ energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with LabMax-TOP and LabMax-Pro SSIM meters.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent J-25MT-10KHZ Energy Sensor Description：

Datasheet

The J-25MT-10KHZ energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with LabMax-TOP and LabMax-Pro SSIM meters.

A USB-direct (PN 1191446) model is available.

A small heatsink (PN 1123430) and medium heatsink (PN 1123431) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with diffuse metallic coating for measuring laser pulses from 50 μJ – 100 mJ at up to 10000 pps.

Key Features:

190 nm to 2.1 μm spectral range

25 mm diameter active area

50 μJ - 100 mJ energy range

10000 pps repetition rate operation

ISO 17025 accredited

Specifications

Cable Type

J DB-25

Active Area Diameter

25 mm

Detector Coating

Diffuse Metallic

Energy Range

50 μJ - 100 mJ

Wavelength Range

190 nm to 2100 nm

Noise Equivalent Energy

<2 μJ

Maximum Pyroelectric Rep. Rate (pulses per second)

10000

Maximum Average Power (watts)

Maximum Pulse Width (microseconds)

1.7

Maximum Energy Density (millijoules per square centimeter)

500 (at 1064 nm, 10 ns)

Diffuser

Calibration Uncertainty (%)(k=2)

±2

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

1064

Cable Length (meters)

2.5
