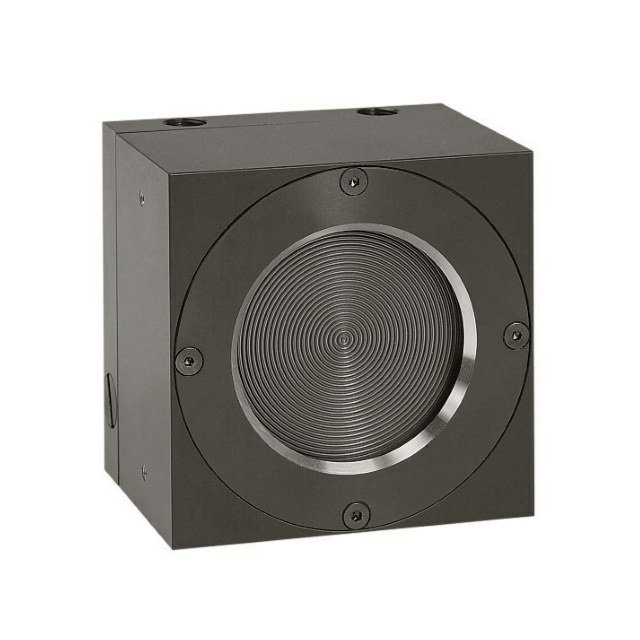

The L250W-UAU is a water cooled OEM thermal power/energy laser sensor with a 50mm aperture. It can measure from 300mW to 250W. It can measure energy from 120mJ to 200J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm. It has USB output.
L250W-UAU Drawing
| Aperture | ?50mm |
| Spectral Range | 0.19-20μm |
| Power Range | 0.3W-250W |
| Energy Range | 120mJ-200J |
| Dimensions | 80 L x 80 W x 58 D (mm) |
| Max Average Power Density | 10kW/cm2 at 250W |
| Response Time | 2.5 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10J/cm2 |
| Max Average Power | 250W water cooled free standing |
| Communication | USB |
