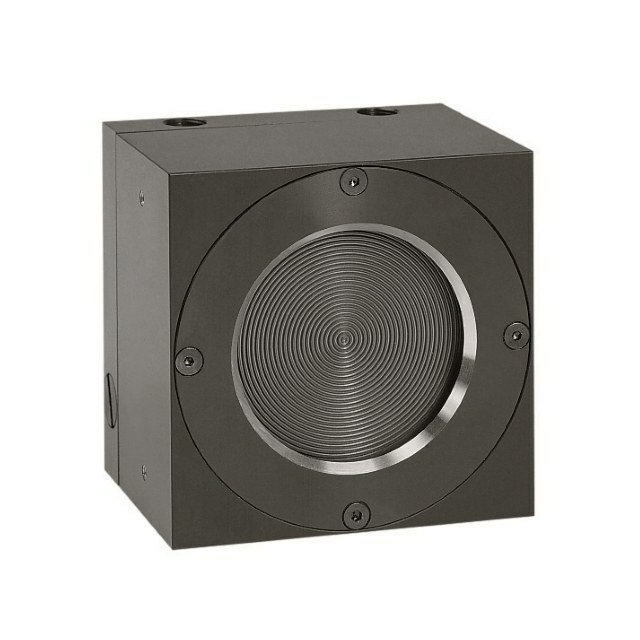

The L300W-UAU is a water cooled OEM thermal power/energy laser sensor with a 50mm aperture. It can measure from 500mW to 300W. It can measure energy from 200mJ to 300J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm. It has USB output.
L300W-UAU Drawing
| Aperture | ?50mm |
| Spectral Range | 0.19-20μm |
| Power Range | 0.5W-300W |
| Energy Range | 200mJ-300J |
| Dimensions | 80 L x 80 W x 58 D (mm) |
| Max Average Power Density | 9kW/cm2 at 300W |
| Response Time | 2.5 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10J/cm2 |
| Max Average Power | 300W water cooled free standing |
| Communication | USB |
