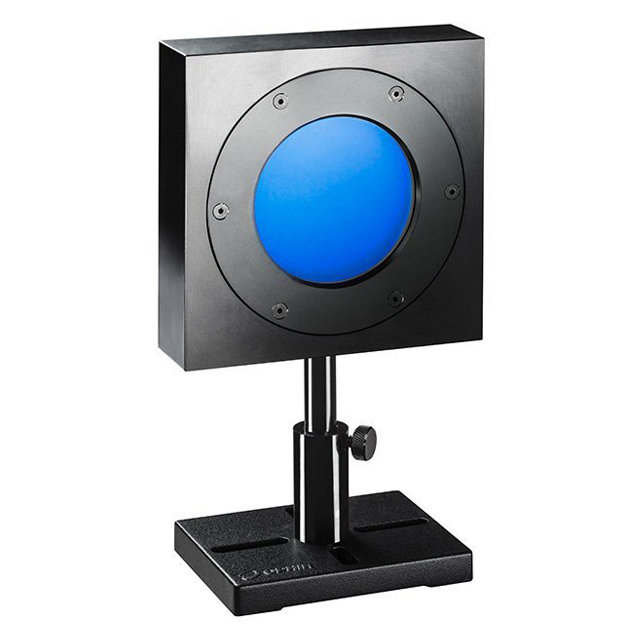

L50(300)A-IPL sensor for air or gel measurements. This sensor measures pulses from IPL dermatological sources. It has a 65mm aperture with a glass window allowing measurement thru air or using gel. It can measure energy from 120mJ to 1000J. It has the high damage threshold LP2 absorber and covers the spectral range from 0.5 to 1.3μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

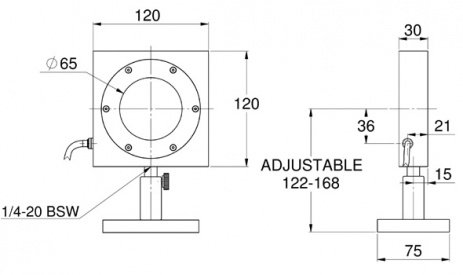

L50(300)A-IPL Drawing
| Absorber Type | LP2 + coated window |
| Aperture | ?65mm |
| Spectral Range | 0.5-1.3μm |
| Power Range | 400mW-300W |
| Energy Range | 120mJ-1,000J |
| Dimensions | 120 L x 120 W x 30 D (mm) |
| Max Pulse Energy | 1000J |
| Max Average Power Density | 17kW/cm2 |
| Response Time | 3 s |
| Max Energy Density(for <100ns) | 0.1J/cm2 |
| Max Energy Density(for 2ms) | 130J/cm2 |
| Max Average Power | 300W |
