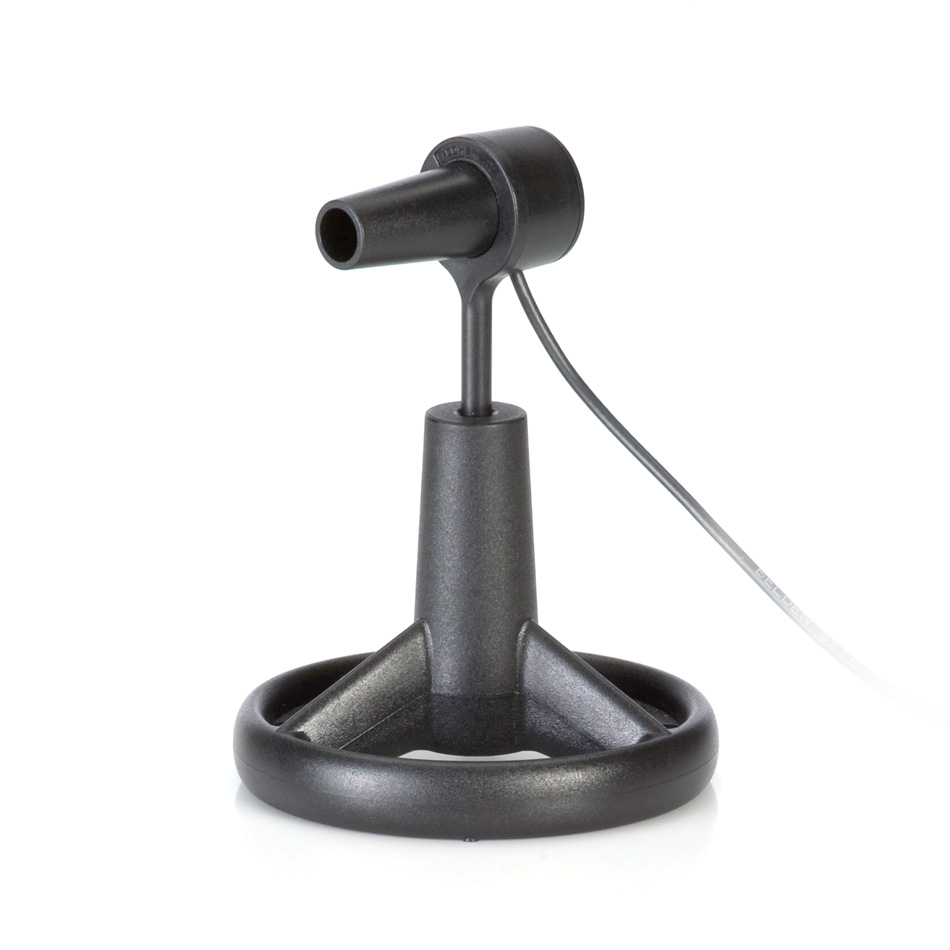

Coherent LM-2 VIS Semiconductor Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: LM-2 VIS
Description: LM-2 high-sensitivity optical sensors are ideal for measurement in the nW to low mW level. An optional 1000:1 attenuator is available (PN 1098318) to support operation up to 5 Watts. SMA-type (PN 1098
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent LM-2 VIS Semiconductor Power Sensor Description：

Datasheet

LM-2 high-sensitivity optical sensors are ideal for measurement in the nW to low mW level. An optional 1000:1 attenuator is available (PN 1098318) to support operation up to 5 Watts. SMA-type (PN 1098589) and FC/PC-type (PN 1098339) fiber optic adapters are available.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax meters. For compatibility with other catalog meters choose the OP-2 VIS model (PN 1098313).

Low power silicon semiconductor power sensor for measuring CW lasers between 10 nW and 30 mW.

Key Features:

10 nW to 30 mW range

7.9 mm diameter active area

Silicon detector

400 to 1064 nm spectral range

Fiber adapters available

ISO 17025 accredited

Specifications

Cable Type

LM DB-25

Power Range

10 nW to 30 mW

Active Area Diameter

7.9 mm

Wavelength Range

400 nm to 1064 nm

Detector

Silicon

Wavelength Range (micrometers)

0.4 to 1.064

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±12% from 400 to 450 nm / ±5% from 450 to 1064 nm

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

400 to 1064 nm

Cable Length (meters)

1.8

Maximum Power Density (watts per square centimeter)

Resolution (nanowatts)
