LaserStar Single Channel 7Z01600 Laser Power Meter & Energy Meter

Updated:2025-03-13

Brand: Ophir
Model: LaserStar Single Channel
Description: The LaserStar is a microprocessor based laser power meter which is menu driven with window based software. Two models are available: single and dual channel.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

LaserStar Single Channel 7Z01600 Laser Power Meter & Energy Meter Description:

The LaserStar is a microprocessor based laser power meter which is menu driven with window based software. Two models are available: single and dual channel.

Compatible with all standard Ophir Thermopile, Pyroelectric, Photodiode and RP sensors.

Large LCD display.

Backlighting & rechargeable battery.

Screen graphics and statistics (std div. min, max).

Analog output.

Built in RS232 interface. Works with Ophir's StarCom32 application.

Log every data point at >1500Hz with pyroelectric sensors.

Non-volatile data storage up to 59,400 points.

Laser tuning screen and power log.

Audio sound for laser tuning and low battery.

LabVIEW software included.

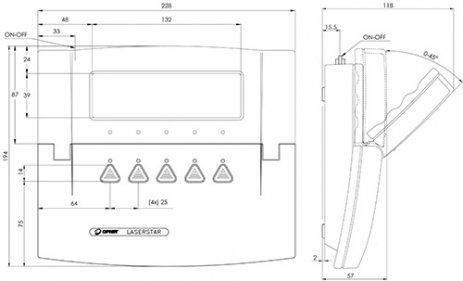

LaserStar Single Channel 7Z01600 Laser Power Meter & Energy Meter Drawing：

LaserStar Single Channel Drawing

LaserStar Single Channel 7Z01600 Laser Power Meter & Energy Meter Specification：

Thermal Sensors	Yes
Photodiode Sensors	Yes
Pyroelectric Sensors	Yes
BeamTrack Sensors	No
Statistics	Yes
Analog Out	1V
Communication	RS232, GPIB
Trigger Input & Output	No
Ethernet	N/A
RS232	30Hz
GPIB	1500Hz
USB	N/A
Bluetooth	N/A
On-Board Data Storage	59.4K
Automation Interface	No
Labview VI's	Yes
