PD10-C 7Z02944 Photodiode Energy Meter For Low Energies

Updated:2025-03-13

Views:3011

  • Brand：Ophir
  • Model：PD10-C
  • Description: The PD10-C is a photodiode energy meter for low energies with a 10mm aperture. It can measure energies from 1nJ up to 13μJ. It can operate at repetition rates up to 20kHz and covers the spectral range
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

PD10-C 7Z02944 Photodiode Energy Meter For Low Energies Description：

The PD10-C is a photodiode energy meter for low energies with a 10mm aperture. It can measure energies from 1nJ up to 13μJ. It can operate at repetition rates up to 20kHz and covers the spectral range from 0.19 - 1.1μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

PD10-C 7Z02944 Photodiode Energy Meter For Low Energies Drawing：

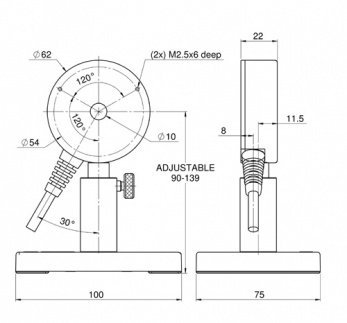

PD10-C Drawing

PD10-C 7Z02944 Photodiode Energy Meter For Low Energies Specifications：

Aperture ?10mm
Spectral Range 0.19-1.1μm
Energy Range 1nJ-13μJ
Maximum Frequency 20,000Hz
Dimensions ?62 W x 22 D (mm)
Max Pulse Energy 13μJ
Max Average Power Density 50W/cm2
Max Pulse Width 0.005 ms
Max Average Power 50mW at 800nm
