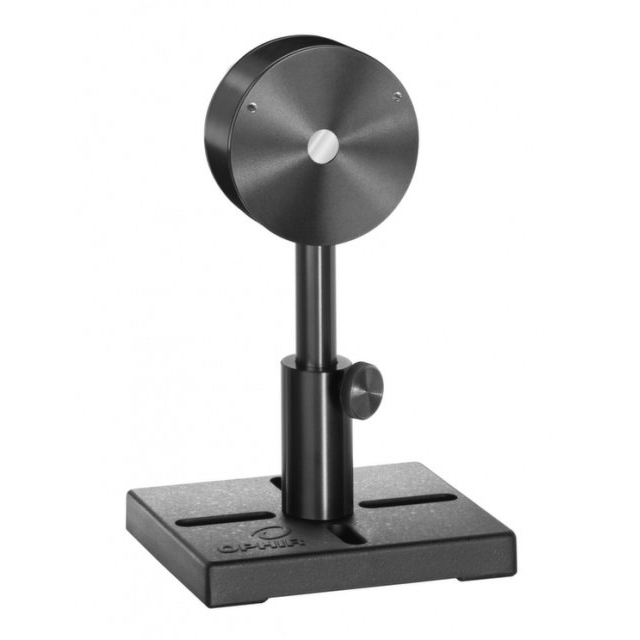

PD10-IR-pJ-C 7Z02946 Photodiode Energy Meter For Low Energies

Updated:2025-03-13

Views:2761

  • Brand：Ophir
  • Model：PD10-IR-pJ-C
  • Description: The PD10-IR-pJ-C is a photodiode energy meter for low energies with a 5mm aperture. It can measure energies from 30pJ up to 14nJ. It can operate at repetition rates up to 10kHz and covers the spectral
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

PD10-IR-pJ-C 7Z02946 Photodiode Energy Meter For Low Energies Description：

The PD10-IR-pJ-C is a photodiode energy meter for low energies with a 5mm aperture. It can measure energies from 30pJ up to 14nJ. It can operate at repetition rates up to 10kHz and covers the spectral range from 0.7 - 1.8μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

PD10-IR-pJ-C 7Z02946 Photodiode Energy Meter For Low Energies Drawing：

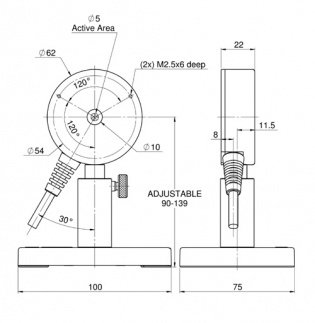

PD10-IR-pJ-C Drawing

PD10-IR-pJ-C 7Z02946 Photodiode Energy Meter For Low Energies Specifications：

Aperture ?5mm
Spectral Range 0.7-1.8μm
Energy Range 30pJ-14nJ
Maximum Frequency 10,000Hz
Dimensions ?62 W x 22 D (mm)
Max Pulse Energy 14nJ
Max Average Power Density 5W/cm2
Max Pulse Width 0.005 ms
Max Average Power 0.2mW
