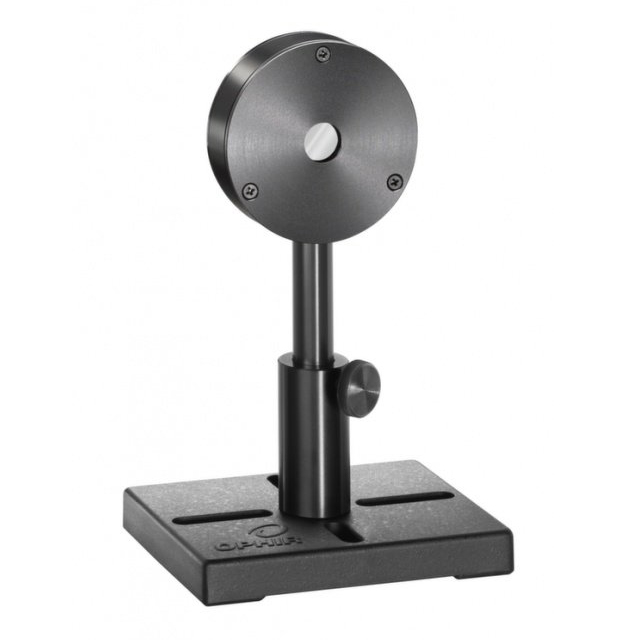

The PE10-C is a pyroelectric energy meter for low energies with a 10mm aperture. It can measure energies from 1μJ up to 10mJ. It can operate at repetition rates up to 25kHz and covers the spectral range from 0.15 - 12μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

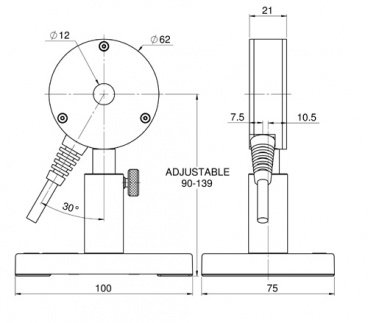

PE10-C Drawing
| Absorber Type | metallic |
| Aperture | ?12mm |
| Spectral Range | 0.15-12μm |
| Energy Range | 1μJ-10mJ |
| Maximum Frequency | 25,000Hz |
| Dimensions | ?62 W x 21 D (mm) |
| Max Pulse Energy | 10mJ |
| Max Average Power Density | 50W/cm2 |
| Max Pulse Width | 30μs |
| Damage Threshold(for <100ns) | 0.1J/cm2 |
| Damage Threshold(for 2ms) | 6J/cm2 |
| Max Average Power | 2W |
