The PE25-C is a general purpose pyroelectric energy meter with a 24mm aperture. It can measure energies from 8μJ up to 10J. It can operate at repetition rates up to 10kHz and covers the spectral range from 0.15 - 3μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

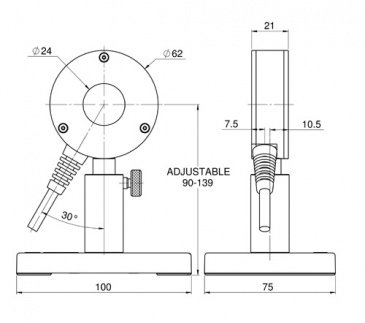

PE25-C Drawing
| Absorber Type | metallic |
| Aperture | ?24mm |
| Spectral Range | 0.15-3μm |
| Energy Range | 8μJ-10J |
| Maximum Frequency | 10,000Hz |
| Dimensions | ?62 W x 21 D (mm) |
| Max Pulse Energy | 10J |
| Max Average Power Density | 20W/cm2 |
| Max Pulse Width | 5ms |
| Damage Threshold(for <100ns) | 0.1J/cm2 |
| Damage Threshold(for 2ms) | 6J/cm2 |
| Max Average Power | 15W |
