The PE9-C is a pyroelectric energy meter for low energies with an 8mm aperture. It can measure laser energies from 0.2μJ up to 1mJ. It can operate at repetition rates up to 25kHz and covers the spectral range from 0.15 - 12μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

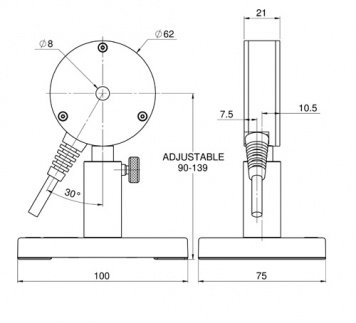

PE9-C Drawing
| Absorber Type | metallic |
| Aperture | ?8mm |
| Spectral Range | 0.15-12μm |
| Energy Range | 0.2μJ-1mJ |
| Maximum Frequency | 25,000Hz |
| Dimensions | ?62 W x 21 D (mm) |
| Max Pulse Energy | 1mJ |
| Max Average Power Density | 30W/cm2 |
| Max Pulse Width | 20μs |
| Damage Threshold(for <100ns) | 0.1J/cm2 |
| Damage Threshold(for 2ms) | 6J/cm2 |
| Max Average Power | 2W |
