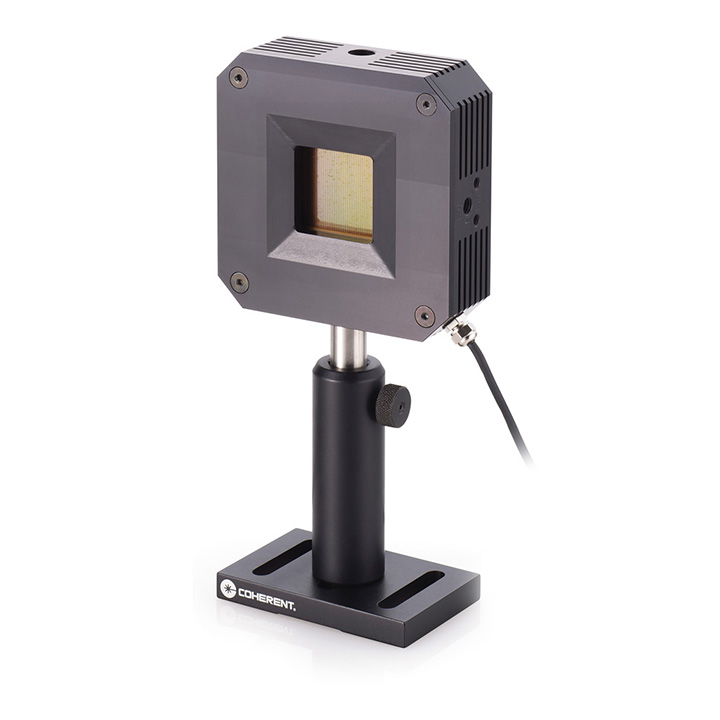

Coherent PowerMax-Pro RS 150 HD Fast Power Sensor

Updated:2025-03-13

Views:2622

  • Brand: Coherent
  • Model: PowerMax-Pro RS 150 HD
  • Description: This PowerMax-Pro RS 150 HD sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model is the fastest option in the PowerMax-Pro line and is intended fo
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PowerMax-Pro RS 150 HD Fast Power Sensor Description：

Datasheet User's Manual

This PowerMax-Pro RS 150 HD sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model is the fastest option in the PowerMax-Pro line and is intended for measuring lasers up to 150W.

The sensor is terminated in an RS232 cable for directly interfacing with a PC or industrial controller. A DB25 model (PN 1266709) is available.

Fast, thin-film transverse thermoelectric, water-cooled power sensor for measuring lasers between 200 mW and 150W. Direct RS232 interface.

Key Features:

200 mW to 150W range

Fast thin-film detector

10 μsec rise time

30x30 mm active area

400 nm to 1100 nm; 9 μm to 11 μm spectral range

Water-cooled

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type
RS232
Cooling Type
Water/Air
Active Area Size
30 x 30 mm
Detector Coating
HD
Power Range for Continuous Usage Air Cooled
200 mW to 17W
Power Range for Continuous Usage Water-cooled
200 mW to 150W
Wavelength Range
400 nm to 1100 nm; 9 μm to 11 μm
Max Peak Power (for modulated lasers)
200W (> 1 μsec pulses)
Maximum Intermittent Power (watts) (air-cooled <5 minutes)
65
Noise Equivalent Power (milliwatts) Standard Mode
4
Noise Equivalent Power (milliwatts) High Speed Mode
8
Noise Equivalent Power (milliwatts) Snapshot Mode
16
Maximum Power Density (kilowatts per square centimeter)
0.2 (at 150W)
Max. Peak Power Density (kilowatts per square centimeter)
14
Rise Time (microseconds)
≤10
Minimum Beam Size (millimeters)
2.0 (1.0 mm - up to 3% error)
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±5
Spectral Compensation Accuracy (%)
±3
Calibration Wavelength (nanometers)
801
Cable Length (meters)
4.2m (13.8 ft.)
Spatial Uniformity (%)(center 75% of aperature; 2.5 millimeter beam)
±5
Max. Energy Density
33 (10 ns; 1064 nm)
