user's manual

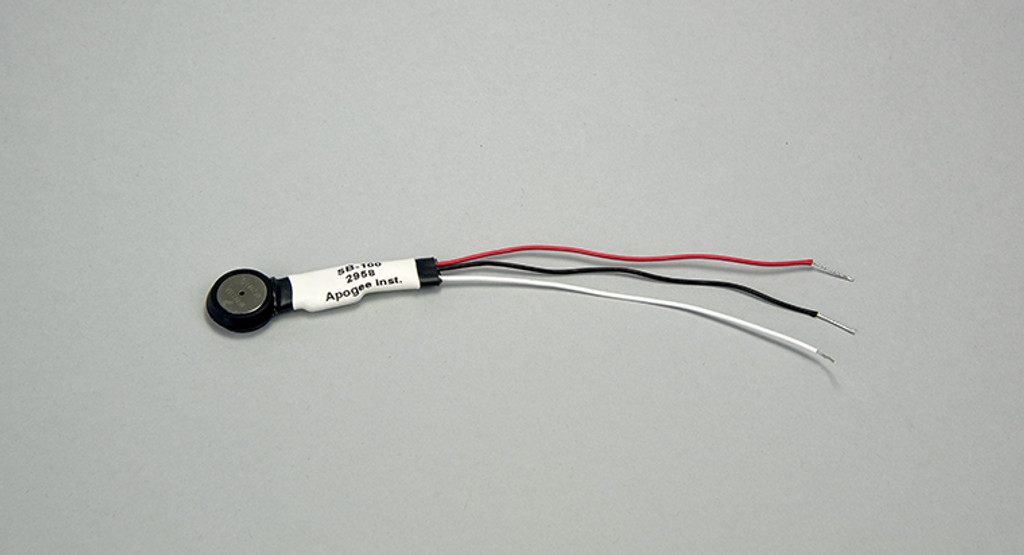

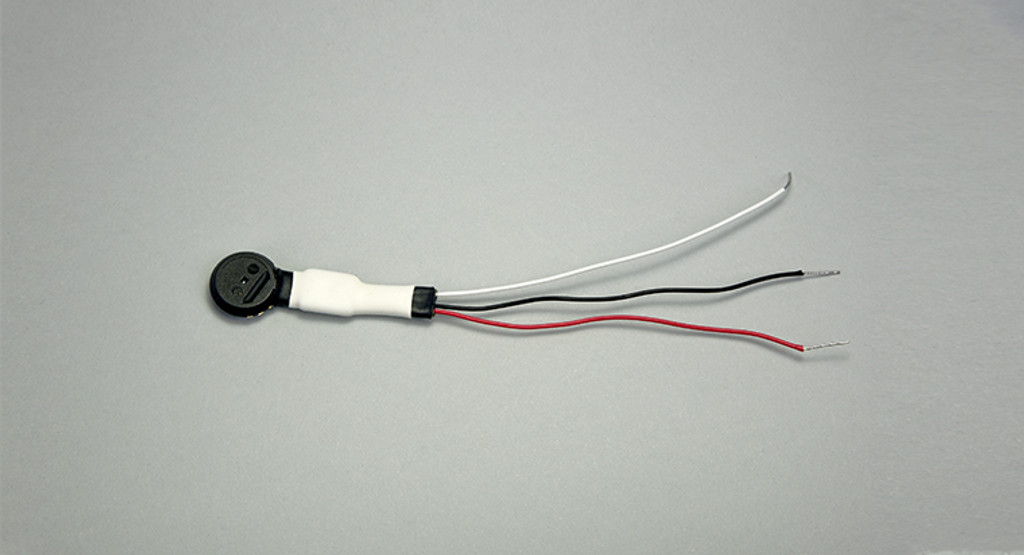

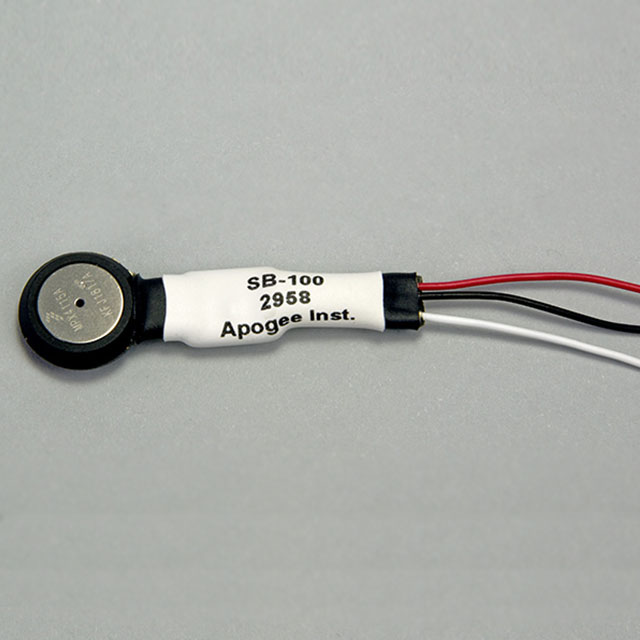

The SB-100 combines excellent performance in a small package size at an affordable price. The sensor works well as a stand-alone product or to combine it with sensors affected by barometric pressure, such as.
| Measurement Range | 15 to 115 kPa (approximate) |
| Maximum Pressure Exposure | 400 kPa (exposure beyond this limit may cause permanent damage to sensor) |
| Sensitivity | 45.9 mV per kPa; 0.459 mV per 0.01 kPa (approximate) |
| Calibration Factor | 0.0218 kPa per mV (generic slope; reciprocal of sensitivity) and 11.4 kPa (generic intercept) |
| Measurement Uncertainty | ± 1.5 kPa (with generic calibration coefficients) |
| Measurement Repeatability | Less than 0.1 % |
| Non-stability (Long-term Drift) | Less than 1 % per year |
| Non-linearity | Less than 1 % |
| Warm-up Time | 20 ms |
| Response Time | 1 ms |
| Temperature Response | Less than 0.002 % per C for temperatures greater than 0 C; -0.015 % per C for temperatures less than 0 C |
| Operating Environment | -40 to 80 C, 0 to 100 % relative humidity (non-condensing) |
| Input Voltage Requirement | 5 V DC |
| Output Voltage Range | 0 to 5 V DC |
| Current Drain | 7 mA DC |

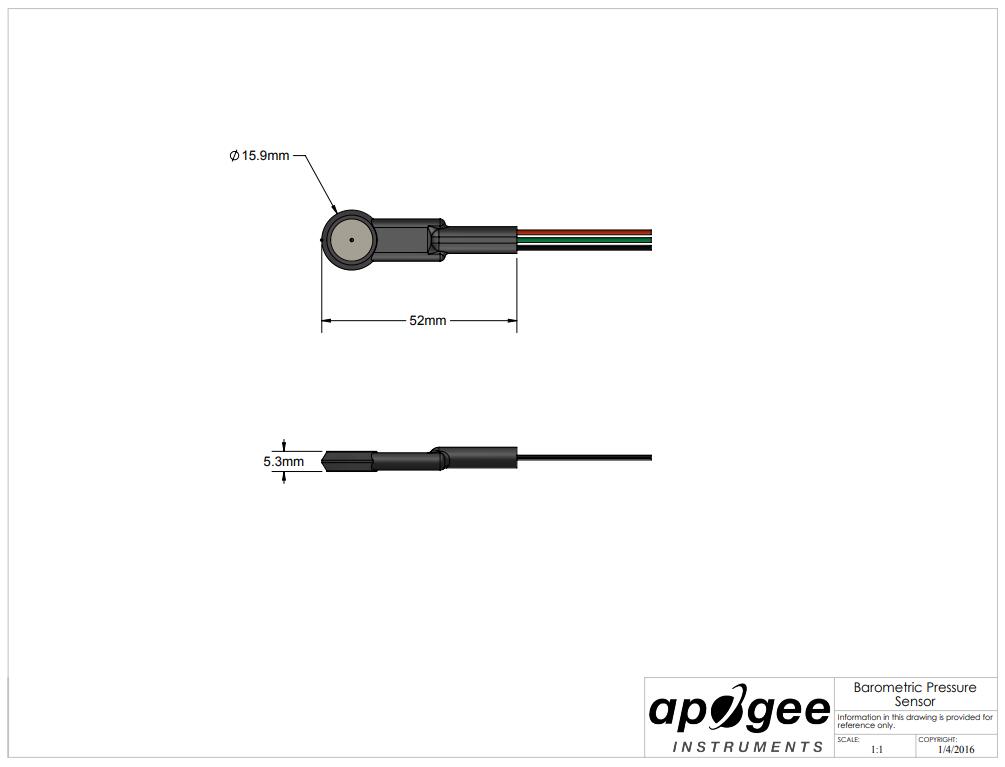

| Dimensions | 16 mm diameter |
| Mass | 5 g |
| Cable | 120 mm pigtail |
| Warranty | 4 years against defects in materials and workmanship |
