Datasheet

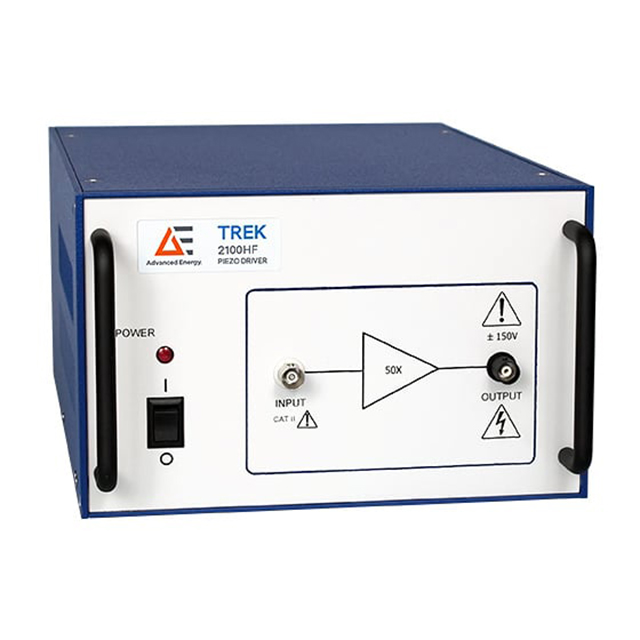

The Trek 2100HF achieves accurate output responses and high slew rates into highly capacitive loads thanks to high reliability and low-noise operation. Its full-power frequency response is essentially flat up to 2 MHz. And no overshoot or instability of the waveform occurs due to the amplifier's unique dual feedback feature.
Features
Full-power frequency response is essentially flat up to 2 MHz
RoHS compliant
NIST-traceable calibration certificate provided with each unit
Benefits
Don’t worry about overshoot or instability of waveform thanks to the dual feedback feature
Achieve accurate output rates and high slew rates in highly capacitive loads
Benefit from low-noise operation and an all-solid-state design
Use in applications such as dielectric material characterization, electro-optic modulation, ion beam control, piezoelectric driving and control, and ultrasonics
Specifications
| Output Power (W): | 45 |
| Maximum Output Current (A): | ±0.3 |
| Slew Rate (V/ms): | >2000000 |
| Output Current Range (mA): | 0 至 ±300 |
| Output Voltage Range (V): | 0 至 ±150 |
