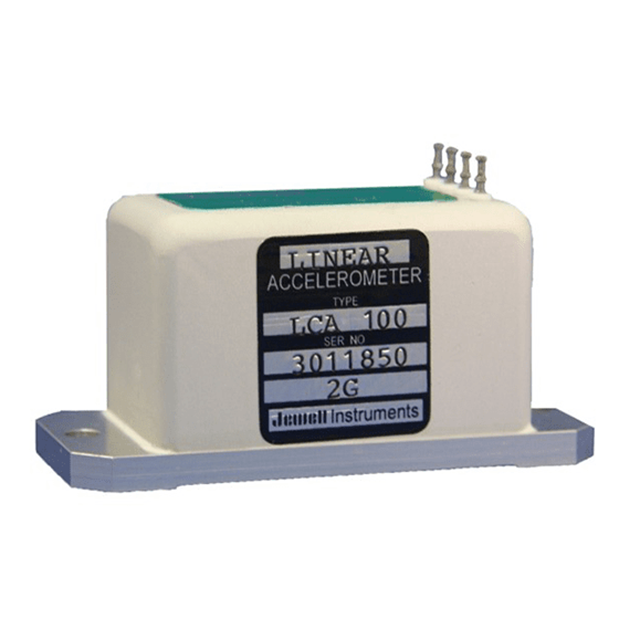

Jewell LCA-100 Series Accelerometer

Updated:2025-08-24

Views:2523

  • Brand: Jewell
  • Model: LCA-100 Series
  • Description: The Jewell LCA-100 Series Accelerometer is a general-purpose ±0.5g to ±5g device. These linear accelerometers are designed for industrial, commercial and aerospace sensing requirements.
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Jewell LCA-100 Series Accelerometer Description：

Datasheet Outline Drawing

The Jewell LCA-100 Series Accelerometer is a general-purpose ±0.5g to ±5g device. These linear accelerometers are designed for industrial, commercial and aerospace sensing requirements.

Specifications

Input Range (g) ±0.5 ±1.0 ±2.0 ±5.0
Full Range Output (VDC ±0.5%)1 ±5.0 ±5.0 ±5.0 ±5.0
Scale Factor (Volts/g nominal) 10.0 5.0 2.5 1.0
Scale Factor Temperature Sensitivity (PPM/°C maximum) 180 180 180 180
Natural Frequency (Hz nominal)2 60 60 60 60
Bandwidth (-3dB Hz nominal) 60 60 60 60
Output Axis Misalignment (° maximum) 0.71 0.71 0.71 0.71
Pendulous Axis Misalignment (° maximum) 0.71 0.71 0.71 0.71
Bias (g) ±0.01 ±0.01 ±0.01 ±0.01
Bias Temperature Sensitivity (μg/°C maximum) 100 100 100 100
Resolution & Threshold (μg maximum) 10 10 10 10
Number of Axes 1
Input Voltage Range (VDC) ±12 to ±18
Input Current (mA maximum) 25
Output Impedance (Ω nominal) 100
Noise (Vrms maximum) 0.005
Operating Temperature Range -55 to +85 °C
Storage Temperature Range -60 to +90 °C
Vibration (grms) 0
Shock 100g, 0.011 sec, ? sine
Seal MIL-STD-202, Mtd. 112
Dimensions 3.10 × 1.38 × 1.525 in
Features ? Filtering Available
? Available in 28V Aircraft Input
? Connector or Pin Configuration
? 0.20% 10-year Scale Factor Stability
? Wide Bandwidths for Higher Range Applications
Applications ? Aircraft Flight Controls
? Aircraft Fatigue Monitoring
? Train Performance Testing
? Aircraft Autopilot System Input
? Aircraft Winds-shear Detection
? Double Integrated Railcar Position
? Rail Automated Train Controls
