Datasheet(CN) Datasheet(EN) User's Manual

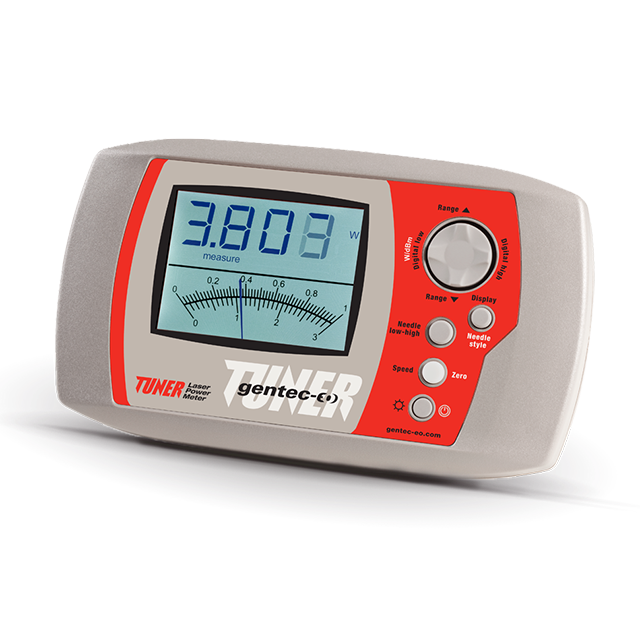

Gentec-EO TUNER Display device with tuning needle for power measurement. Single-channel.
Key Features
Ultra-Fast Needle
Less than 1 second response time
Reads Power Detectors
Thermopiles and photo detectors of the PH100 and PH20 series
Large LCD Display
77 x 58 mm
5 mm digits
Backlight (with AC adaptor)
3 Display Functions for the Needle
Normal
Tail (indicates speed)
Bargraph
Also high and low values hold
Single-Button Navigation
Direct access and long press access to the main functions
Low Consumption
Lasts 500 hours with 4 AA alkaline batteries
Specifications
| Controller and GUI specifications | |
| Digital display size | 77 x 58 mm LCD |
| Data display | Real time, ultrafast tuning needle: tail, bar graph, high/low |
| Refresh rate | 4 Hz |
| Analog output | 0-1 V, full scale, ±1 % |
| External trigger | None |
| Battery type | 4 x AA Alkaline |
| Battery life | 500 hours with detector |
| External power supply | 9 VDC 1.66 A |
| Power meter specifications | |
| Digital resolution | 10 pW |
| Device accuracy | ±1 %, full scale |
| Statistics | Min, max |
| Response time | Min, max |
| Physical characteristics | |
| Dimensions | 210W x 122H x 44D mm |
| Weight | 0.47 kg |
