AI25 and AIC10 Product Overview AI25 Direct Control Guide Datasheet

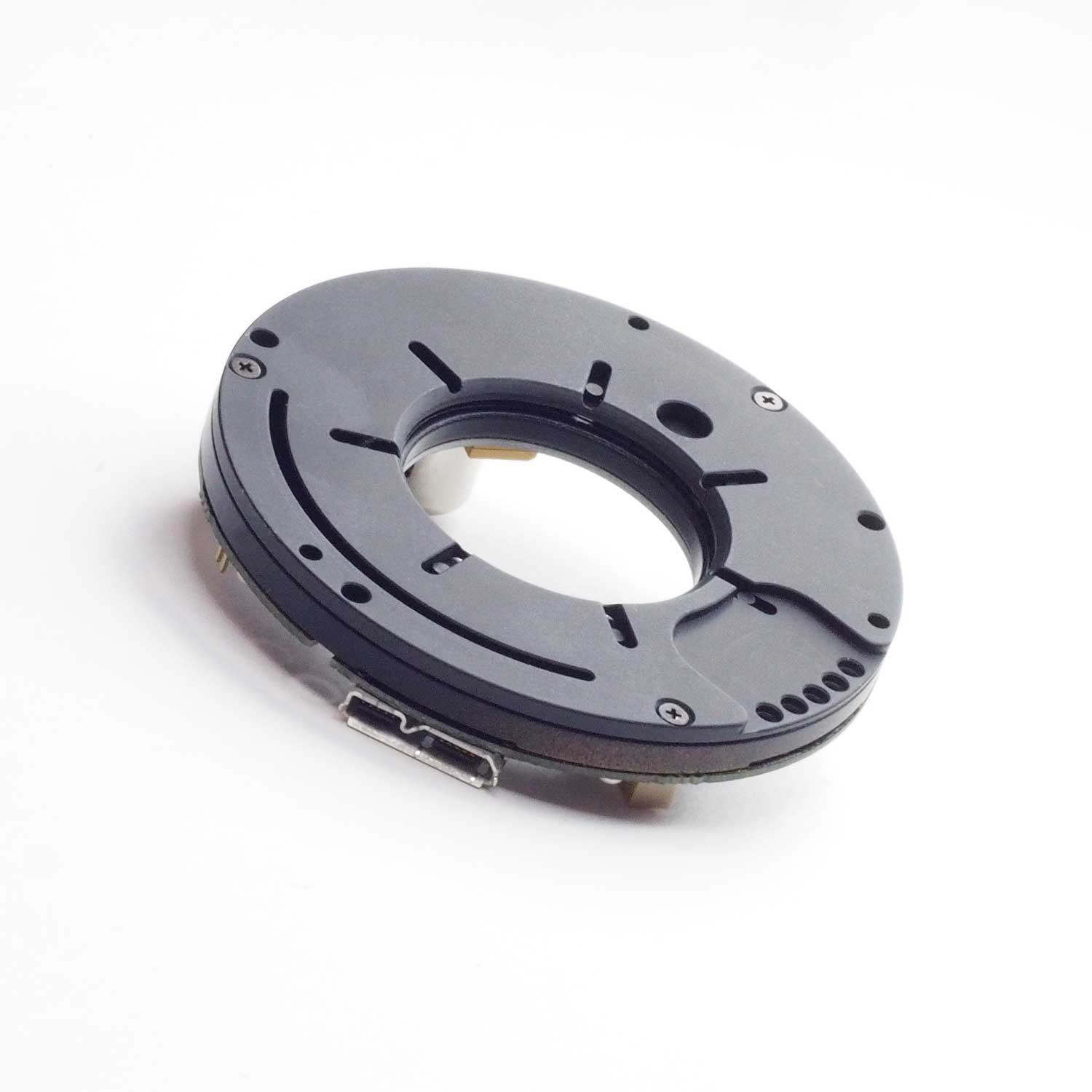

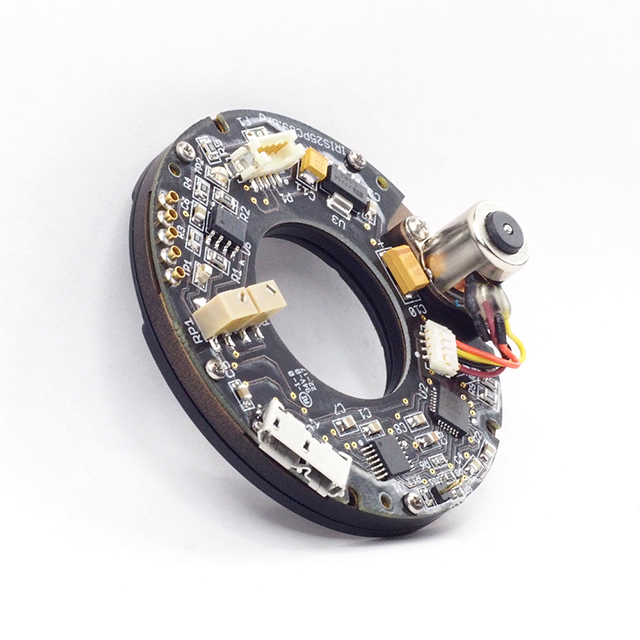

The Uniblitz AI25 is a motorized iris diaphragm (auto iris) that allows for the remote control of a variable 25 mm aperture. This electronically-controlled aperture is ideal for remote light attenuation or depth-of-field control. The iris’s aperture closes down to 1.5 mm, and an optional shutter attachment allows users to fully close the aperture.

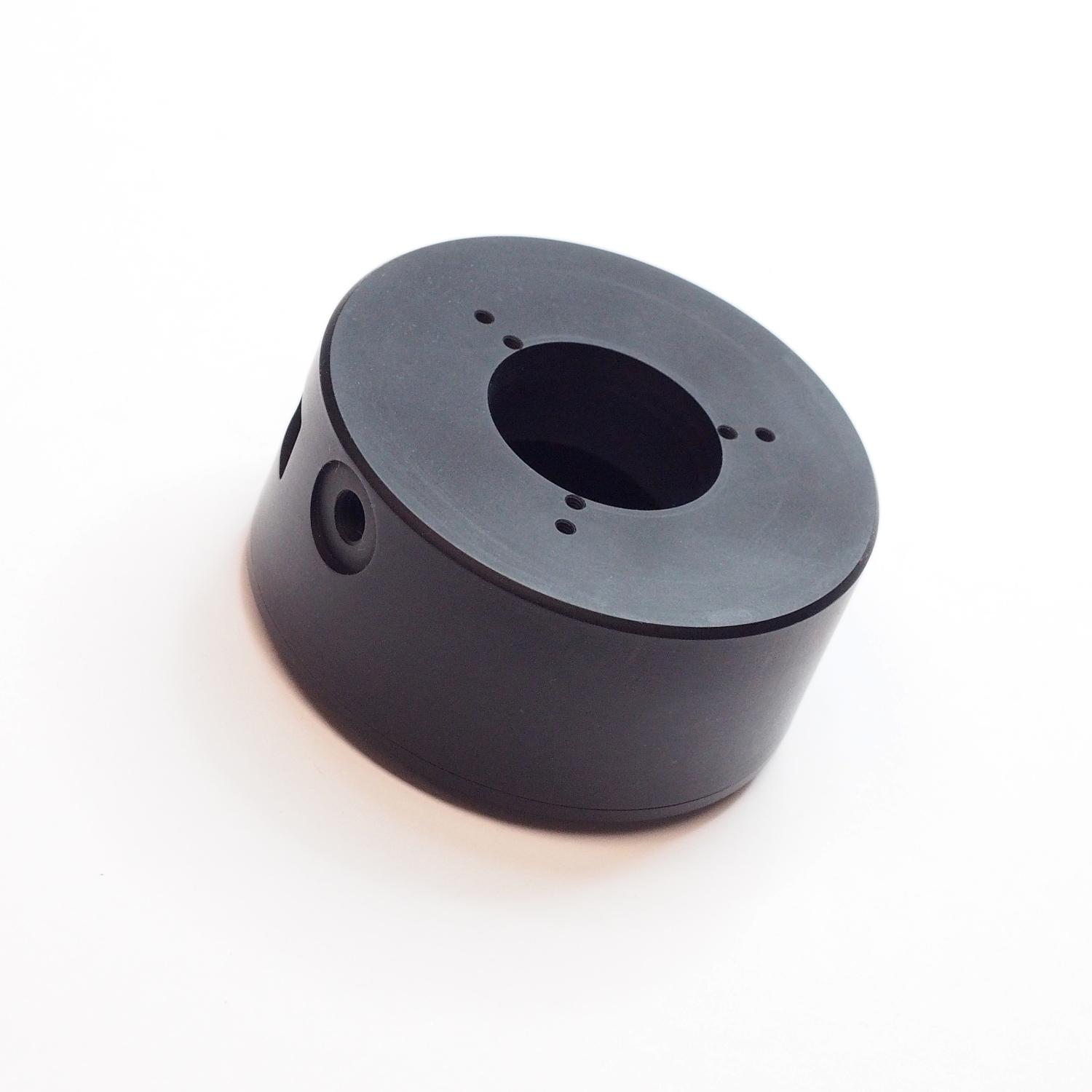

The AI25’s low-profile form-factor means that it can be used in applications where spacial limitations are a consideration. An optional housing is available which gives the AI25 a compact package with no externally protruding components and two flat mounting surfaces.
Key Features
Operation Range: 1.5 – 25.0 mm
Closing speed: 0.22 seconds
Resolution (mm/step): 0.44 ± 0.33
Low-profile form-factor
Optional high speed shutter attachment available
Optional iris/shutter housing available
RoHS Compliant
Configured for the AIC10 Iris Controller
Specifications
| Weight (Un-housed) | 1.31 oz (37.20 g) |
| Weight(W/ Shutter) | 2.00 oz (56.80 g) |
| Weight(Housed W/ Shutter) | 5.82 oz (164.90 g) |
| Operating Temp. | -10 – +65 °C |
| Number of Iris Blades | 7 |
| Number of Steps | 54 |
| Resolution (mm/step) | 0.44 ± 0.33 |
| Operation Range (mm) | 1.5 – 25.0 |
| Closing Speed (min to max) | 0.22 seconds |
