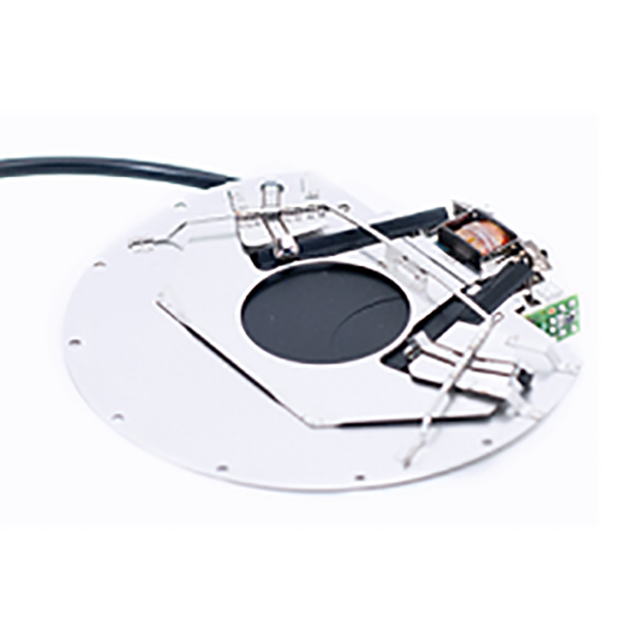

The Uniblitz VS35 has been designed to provide accurate, repeatable exposures for a wide variety of applications. The VS series shutters have been successfully field tested in microscopy, video imaging, PMT protection, and photographic applications worldwide.Uni-stable shutter devices, like the VS35, require power to hold the blades in the open state (though some of these clearance devices may be custom-configured for “normally open” operation).
Key Features
35mm aperture
Uni-stable operation
Small, slim form-factor
RoHS Compliant
Transfer time on opening: 13.0 milliseconds
Total opening time: 18.0 milliseconds
Available Part Numbers
| Part Number | Product Information |
| VS35S1ZM1R1-SD | 35mm Shutter, for use with VCM-D1, AlMgF2 (ZM) coated blades, R1 High Temp Option with Y-cut |
| VS35S1T0LR1-EC-SD | 35mm Shutter, for use with VCM-D1,Teflon® coated blades, 18″ Flying leads, un-housed, R1 High Temp Option, EC Vacuum Option |
| VSR35E1T0-SD | 35mm Shutter, for use with D880C/VED24, Normally Open, Teflon® coated blades, un-housed |
| VS35S2ZM0-SD | 35mm Shutter, for use with VCM-D1, AlMgF2 (ZM) coated blades, Housed |
| VS35S2ZM1-SD | 35mm Shutter, for use with VCM-D1, AlMgF2 (ZM) coated blades, Housed, with Electronic Sync |
